Product Details

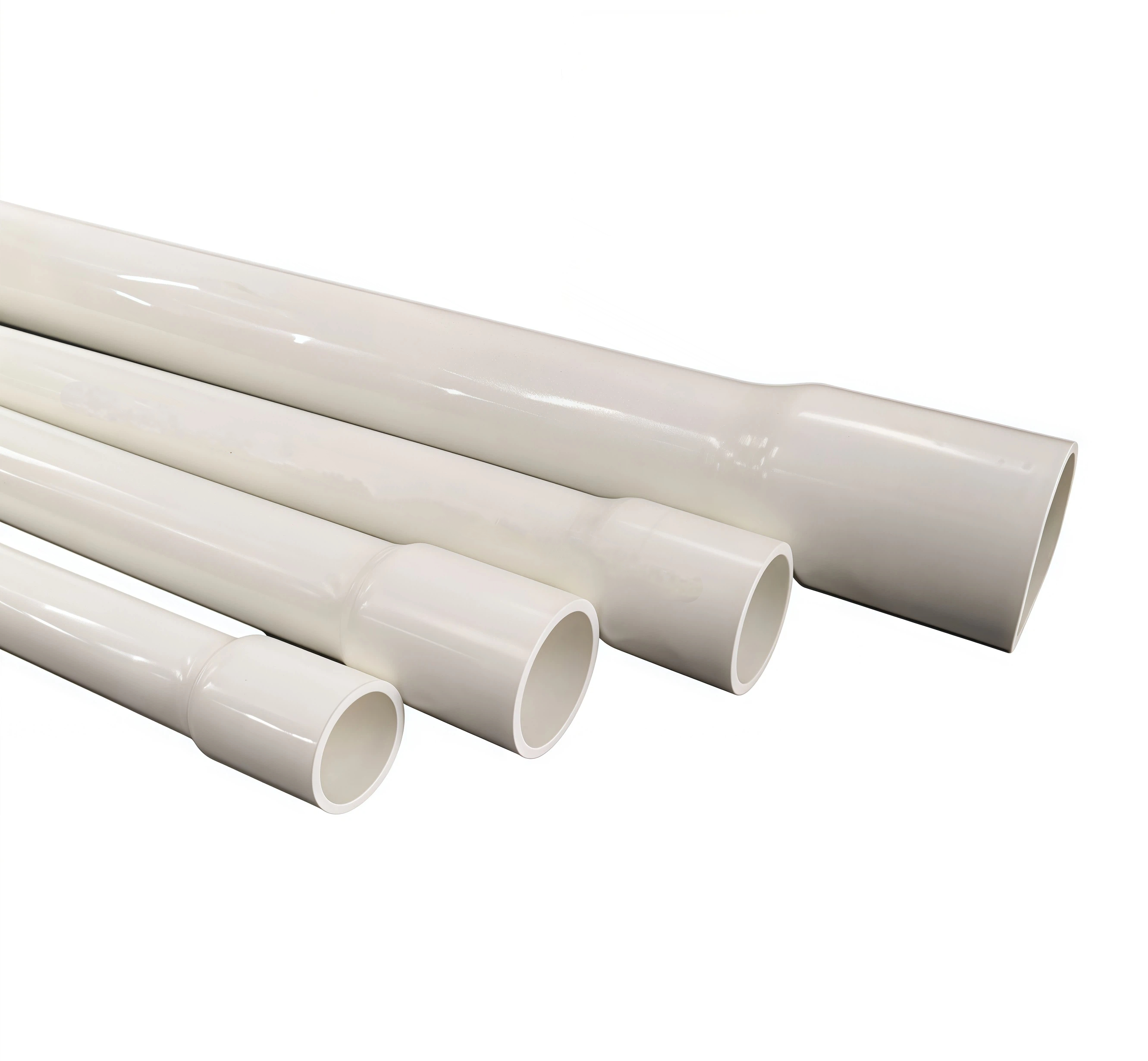

Flame-retardant Insulating PVC Electrical Conduit
- 1. Excellent flame retardancy: High oxygen index, quick self-extinguishing, prevents fire spread. 2. Good insulation: Withstands 25 kV voltage, avoids leakage. 3. Corrosion and pest resistance. 4. Easy to bend and convenient for construction: Lightweight, bendable at any angle without heating. 5. Simple connection: Uses adhesive to connect conduit and fittings.
Flame-retardant Insulating PVC Electrical Conduit
Product Introduction:
PVC electrical conduit is a kind of conduit supported by flame-retardant material. It acts on the outside of electric wires and can effectively avoid the occurrence of electric leakage caused by wire faults, ensuring the safety of household electricity consumption. At the same time, PVC electrical conduit also has very good corrosion resistance and compressive strength.
Product Main Advantages:
1. Excellent flame retardancy: High oxygen index, quick self-extinguishing, prevents fire spread.
2. Good insulation: Withstands 25 kV voltage, avoids leakage.
3. Corrosion and pest resistance.
4. Easy to bend and convenient for construction: Lightweight, bendable at any angle without heating.
5. Simple connection: Uses adhesive to connect conduit and fittings.
Product Specifications:
Product Name: Flame-retardant Insulating PVC Electrical Conduit. Implementation Standard: JG3050-1998. | ||||
Nominal size | Outer diameter | Limit deviation | Minimum inner diameter | Minimum wall thickness |
16 | 16 | 0 -0.3 | 12.2 | 1.0 |
20 | 20 | 0 -0.3 | 15.8 | 1.1 |
25 | 25 | 0 -0.4 | 20.6 | 1.3 |
32 | 32 | 0 -0.4 | 26.6 | 1.5 |
40 | 40 | 0 -0.4 | 34.4 | 1.9 |
50 | 50 | 0 -0.5 | 43.2 | 2.2 |
63 | 63 | 0 -0.6 | 57.0 | 2.7 |
Remarks: Normally 4m/piece. Custom lengths available.
Product Core Indicators:
No. | Inspection Item | Unit | Performance Requirements | ||
1 | Appearance | — | Smooth，-（0.1+0.1A）≤ΔA≤0.1+0.1A | ||
2 | Smooth | — | Passed by gauge self-weight. | ||
3 | Minimum outer diameter | — | Not passed by gauge. | ||
4 | Minimum inner diameter | — | Passed by gauge self-weight. | ||
5 | Minimum wall thickness | — | Wall thickness not less than specified in the above table. | ||
6 | Compressive performance (1 min) | Load | % | ≤25 | |
Unloading | % | ≤10 | |||
7 | Impact performance | — | At least 10 out of 12 specimens are not damaged or cracked. | ||
8 | Bending performance | — | No visible cracks. | ||
9 | Flattening performance | — | Passed by gauge self-weight. | ||
10 | Passed by gauge self-weight. | — | No cracking or breaking | ||
11 | Heat resistance performance | mm | ≤2 | ||
12 | Flame retardant performance | Self-extinguishing time | s | ≤30 | |
Oxygen index | — | ≥32 | |||
13 | Electrical performance | — | No breakdown within 15 minutes. R ≥ 100 MΩ. | ||
