ISO Standard PVC-U Pressure Pipe for Low Pressure Irrigation Water Supply (PN6/PN10)
Product Description

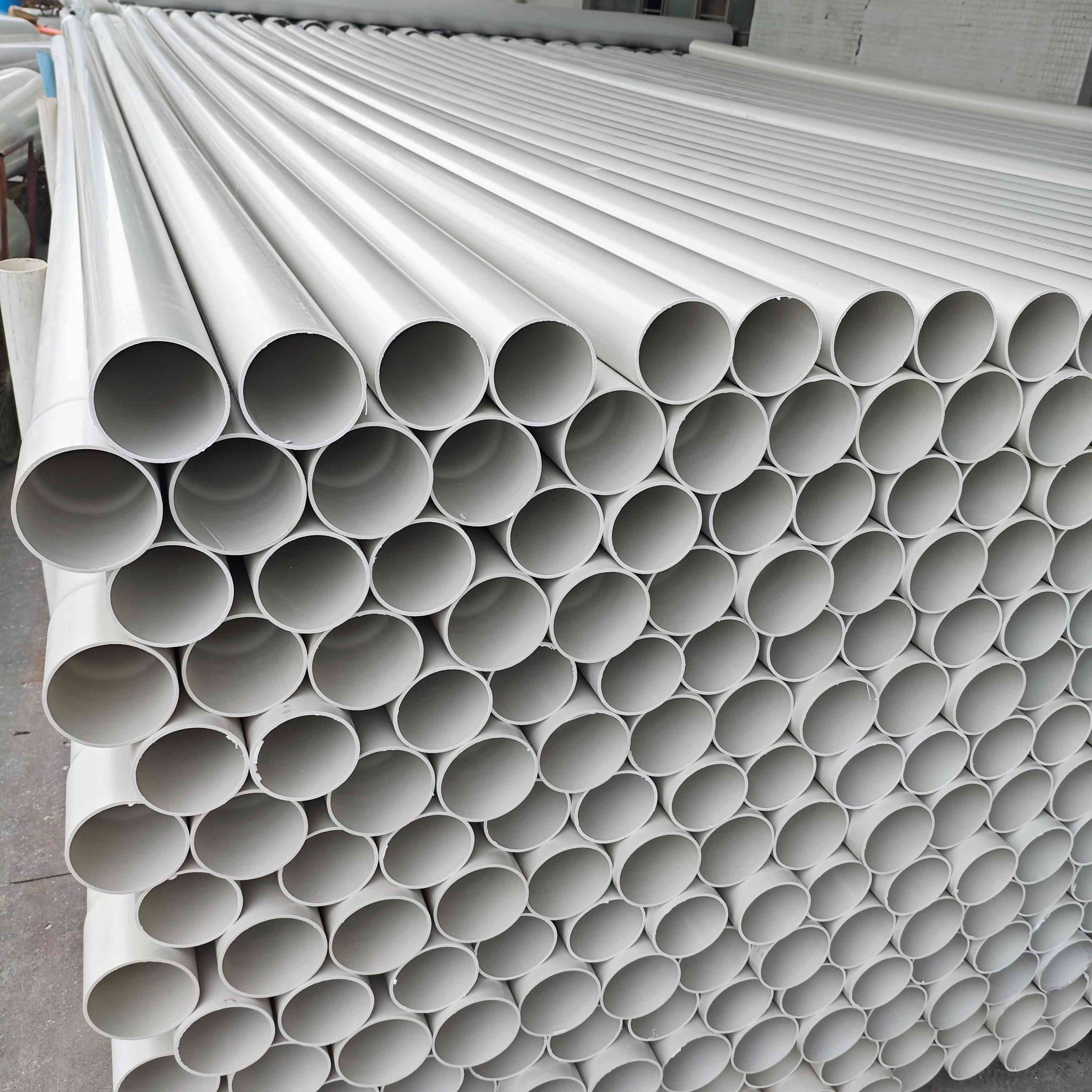

Skywise PVC-U Pressure Pipe for low pressure irrigation is manufactured under the ISO 1452-2 standard, made from unplasticized Polyvinyl Chloride (PVC-U) compound.
It is widely used in farm irrigation, orchard drip irrigation, greenhouse watering and other low-pressure water transmission systems.
Standard & Material
Standard: ISO 1452-2 (Plastics piping systems for water supply — PVC-U)
Material: PVC-U (Unplasticized Polyvinyl Chloride), virgin compound
Color: Blue / dark grey / white (as requested)
End: Plain end with socket, or bell end with rubber ring
Specification
Pressure rating: PN6 (0.6 MPa) / PN10 (1.0 MPa) — ideal for low pressure irrigation
Size range: 20mm – 315mm OD (custom sizes available)
Length: 4m / 5.8m / 6m per piece, or as required
Working temperature: 0°C – 45°C
Dimensions & Wall Thickness (per ISO 1452-2:2009, Table 2)
| Outer Diameter dn (mm) | Wall thickness en (mm), min. | |
|---|---|---|
| PN6 (SDR 41) | PN10 (SDR 26) | |
| 20 | — | — |
| 25 | — | — |
| 32 | — | 1.6 |
| 40 | 1.5 | 1.9 |
| 50 | 1.6 | 2.4 |
| 63 | 2.0 | 3.0 |
| 75 | 2.3 | 3.6 |
| 90 | 2.8 | 4.3 |
| 110 | 2.7 | 4.2 |
| 125 | 3.1 | 4.8 |
| 140 | 3.5 | 5.4 |
| 160 | 4.0 | 6.2 |
| 180 | 4.4 | 6.9 |
| 200 | 4.9 | 7.7 |
| 225 | 5.5 | 8.6 |
| 250 | 6.2 | 9.6 |
| 280 | 6.9 | 10.7 |
| 315 | 7.7 | 12.1 |
Note: Values are nominal minimum wall thicknesses en per ISO 1452-2:2009 Table 2. PN ratings apply at 20°C. Working pressure shall be derated at higher temperatures (per EN 1452 derating factors). Custom sizes and other PN ratings (PN4 / PN16) available on request.
Features
Light weight, easy to transport and install
Corrosion resistant, no rust, long service life over 50 years underground
Smooth inner wall, low flow resistance, saves water and energy
Non-toxic, safe for irrigation water conveyance
Cost effective compared with steel or ductile iron pipe
Application
Farmland / crop field irrigation
Orchard & vineyard irrigation
Greenhouse & nursery watering
Low pressure water transmission and distribution
Why Choose Skywise
Guangzhou Skywise is a professional PVC piping manufacturer based in Guangzhou, China.
We supply ISO standard PVC-U pressure pipes to irrigation distributors, project contractors and traders worldwide. OEM sizes, colors and packing are available.
